General Details for Wall Top Perimeter Security Perimeter Security

Securing the wall top perimeter is a critical layer of protection for high-security facilities, industrial sites, and critical infrastructure. The FOL-101 Wall Top Perimeter Intrusion Detection System provides continuous, real-time monitoring of boundary walls using advanced fiber-optic sensing technology.

The system is specifically designed to detect unauthorized access attempts and intrusion activities, including wall climbing, cutting, drilling, tampering, vibration, and attempts to cross or breach the boundary — before an actual intrusion occurs. With high detection accuracy and extremely low nuisance alarms, FOL-101 delivers reliable and intelligent perimeter protection for sensitive and high-risk environments.

How the Wall Top Perimeter Security Works

A fiber-optic sensing cable is installed along the top of the boundary wall. The perimeter is divided into Zone 1 to Zone 8, each covering up to 500 m range. Any physical disturbance or vibration on the wall generates an instant alarm. The controller identifies the exact zone of intrusion, and alarms are transmitted to the central control room for immediate response.

Zone-Based Alarm Detection

• Exact intrusion location displayed zone-wise
• Multiple intrusions can be detected simultaneously across different zones
• Faster response time and improved operational efficiency
• Ideal for high-security wall boundaries and restricted areas

Key Advantages of Wall Top Perimeter Security

• Early intrusion detection before perimeter breach
• Extremely low nuisance alarms with 24×7 reliable monitoring
• No electrical power required on wall top installation
• Immune to EMI, lightning, and harsh environmental conditions
• Centralized monitoring from a secure control room

FR-201 is a point-locating Fiber Optic Intrusion Detection System designed to secure wall top perimeters for high-security facilities, industrial sites, and critical infrastructure. Wall boundaries require reliable, fail-safe protection to prevent unauthorized access, climbing attempts, tampering, and intrusion activities.

The FR-201 provides continuous, real-time monitoring of wall top perimeters using advanced fiber-optic sensing technology. The system is engineered to detect, classify, and precisely locate intrusion attempts such as wall climbing, cutting, vibration, drilling, or tampering — before a perimeter breach occurs — enabling rapid and effective security response.

How the System Works

A single-mode fiber-optic sensing cable is installed along the top of the perimeter wall. Any physical disturbance or vibration on the wall generates a signal that is analyzed by the FR-201 controller. The system produces a pinpoint location alarm within a few meters, and the exact intrusion point is displayed on the monitoring interface, allowing security teams to respond quickly and accurately to real threats.

Wall Top Intrusion Detection

• Wall climbing attempts
• Cutting or drilling activities
• Vibration and impact detection
• Wall tampering or forced entry attempts

Pinpoint Location Alarms

• Intrusion location accuracy within a few meters
• Supports multiple simultaneous intrusion events

Integration

• Alarm data available via:

  • TCP/IP (XML, ASCII, Modbus)
  • Relay outputs

• Can automatically trigger:

  • PTZ cameras
  • Hooters
  • Flood lights

Key Advantages for Wall Top Perimeter Security

• Early intrusion detection before perimeter breach
• Alarms displayed on maps with precise meter location and GPS coordinates
• Extremely low nuisance alarms using intelligent pattern-recognition algorithms
• No electrical power required on the wall top
• Immune to EMI, lightning, and harsh environmental conditions
• Cut-immune configuration — system remains operational even if the cable is cut
• High reliability for mission-critical facilities
• Centralized monitoring from a secure control room
• Precise intrusion location enabling accurate camera triggering

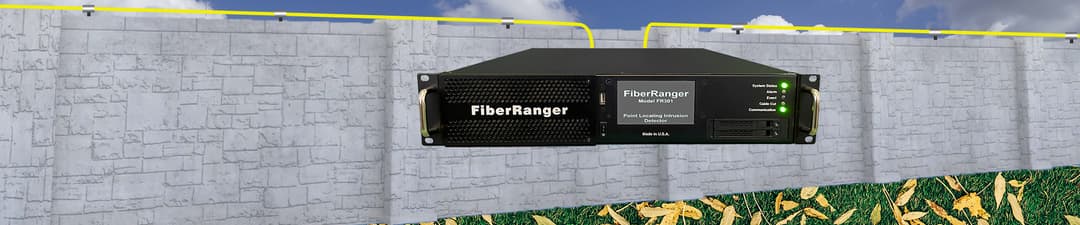

The FR301 Wall Top Perimeter Intrusion Detection System uses advanced fiber-optic sensing technology to detect and locate intrusion attempts along perimeter walls with very high accuracy. The system provides long-range monitoring of perimeter boundaries while precisely identifying the location of intrusion attempts within a few meters.

Based on FiberRanger distributed fiber-optic sensing technology, the FR301 continuously monitors vibrations and disturbances on wall-mounted sensing cables. The system detects multiple simultaneous intrusion events and provides exact location information for fast response and security verification.

Smart Wall Top Installation

A single-mode fiber-optic sensing cable is installed along the top of perimeter walls or security barriers, allowing the system to monitor the entire boundary continuously.

The sensing cable can be mounted on:

• Wall-top fences
• Razor wire or concertina wire
• Metal mesh barriers
• Security wall extensions
• Dedicated mounting brackets on perimeter walls

Any vibration or disturbance generated by intrusion attempts is analyzed in real time by the FR301 controller, which generates alarms and identifies the exact location of the event.

The system detects:

• Wall climbing attempts
• Cutting or tampering with razor wire
• Pulling or lifting of security fencing
• Attempts to cross perimeter walls
• Disturbance or impact on wall-mounted barriers

This allows security operators to identify and respond to intrusion attempts immediately.

Intelligent Perimeter Monitoring

The FR301 continuously analyzes vibration signals on the fiber-optic cable using advanced pattern-recognition algorithms.

This intelligent analysis enables the system to detect:

• Climbing attempts on perimeter walls
• Fence cutting or tampering
• Pulling or lifting of wall-top barriers
• Intrusion attempts across perimeter walls
• Suspicious activity along the wall boundary

The system distinguishes real intrusion attempts from environmental effects, ensuring reliable detection with minimal false alarms.

Pinpoint Location & Long-Range Coverage

The FR301 system provides high-precision event location and long-range monitoring capabilities, making it suitable for large facilities and critical infrastructure.

Key capabilities include:

• Typical location accuracy of ± 6 meters
• Monitoring of multiple simultaneous intrusion events
• Software-defined virtual zones for flexible perimeter segmentation
• Instant visualization of event location for faster response

These capabilities enable security teams to quickly identify and respond to perimeter breaches.

High Reliability for Critical Perimeter Security

The FR301 is designed for mission-critical perimeter protection and offers industry-leading reliability.

Key reliability features include:

• Cut-immune sensing architecture — system continues operating even if the cable is cut
• 100% intelligent redundant controller design
• Automatic switch to secondary controller if primary fails
• Dual redundant power supply and storage system
• No electrical power required in the field along the wall perimeter
• Immune to EMI, RFI, lightning, and harsh weather conditions

Alarm & System Integration

The FR301 integrates easily with security monitoring platforms and command centers.

Integration capabilities include:

• Alarm outputs via XML, ASCII, Modbus, and gRPC over TCP/IP
• Optional relay contact outputs for external security systems
• Integration with video surveillance systems (PTZ cameras) for event verification
• Compatible with GPS / GIS mapping platforms
• Supports centralized monitoring of multiple systems

This allows operators to visualize alarms on maps, verify events with cameras, and respond quickly to security incidents.
