General Details for Electrical Utilities Perimeter Security

Securing the perimeter is the first and most critical layer of physical protection for electrical substations, power transmission facilities, and grid infrastructure sites. The FOL-101 Fence and Buried Perimeter Intrusion Detection System provides continuous, real-time monitoring of both perimeter fences and underground boundaries using advanced fiber-optic sensing technology. The system is specifically designed to prevent unauthorized access, theft, vandalism, sabotage, and intrusion attempts at critical power infrastructure. It reliably detects fence climbing, cutting, pulling, lifting, and tampering, as well as digging or ground disturbance near the substation boundary — before any security breach occurs. With high detection accuracy and extremely low nuisance alarms, FOL-101 ensures reliable 24×7 protection for electrical substations, helping safeguard power equipment, ensure grid stability, and maintain uninterrupted electricity supply.

How the Fence and Buried Perimeter Security Works?

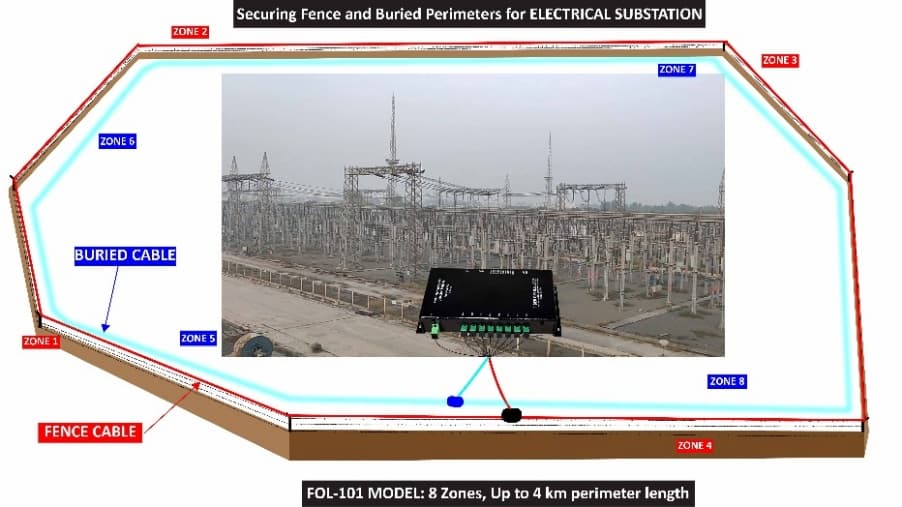

A fiber-optic sensing cable is installed on the perimeter fence and/or buried underground along the electrical substation boundary. The perimeter is divided into Zone 1 to Zone 8, each covering up to 500 m range. Any physical disturbance on the fence or ground generates an instant alarm. The controller identifies the exact zone of intrusion, and alarms are transmitted to the central control room for immediate response.

Zone-Based Alarm Detection

• Exact intrusion location displayed zone-wise
• Multiple intrusions can be detected simultaneously in different zones
• Ideal for electrical substations, switchyards, transformer yards, and power grid facilities
• Reduces response time and improves the operational efficiency of security personnel

Key Advantages for Electrical Substation Security

• Early intrusion detection before perimeter breach
• No false alarms and 24×7 highly reliable security
• No electrical power required on the fence
• Immune to EMI, radiation-safe, lightning, and extreme weather conditions
• Centralized monitoring from the substation control room, grid command center, or remote monitoring facility

FR-201 is a point-locating Fiber Optic Intrusion Detection System designed to protect electrical substations, power transmission yards, switchyards, and critical grid infrastructure facilities. Electrical substations require multi-layered, highly reliable perimeter security to prevent unauthorized access, theft, vandalism, sabotage, and covert intrusion attempts such as digging or boundary breaches near high-voltage assets. The FR-201 provides continuous, real-time monitoring of both perimeter fencing and buried boundaries using advanced fiber-optic sensing technology. The system is engineered to detect, classify, and precisely locate attempts to breach the secured perimeter — including fence attacks, ground disturbance, digging, or tunneling — well before a security breach occurs, enabling immediate and targeted response to protect critical power infrastructure.

How the System Works?

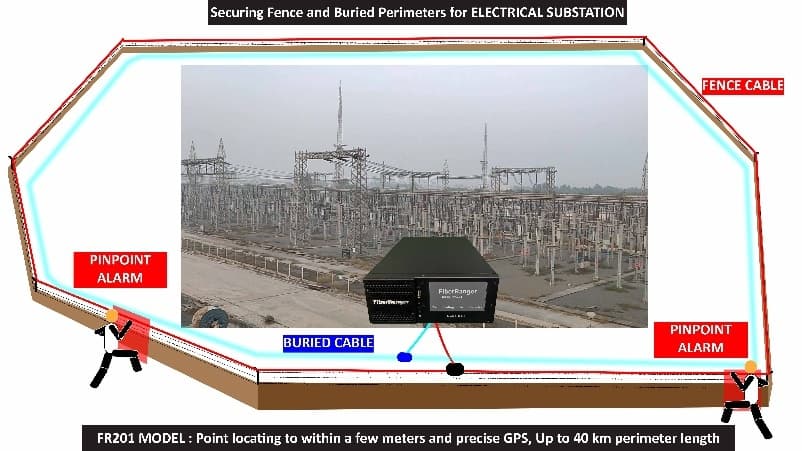

A fiber-optic sensing cable (single-mode) is installed on the perimeter fence and/or buried underground along the electrical substation boundary. The same sensing cable can protect both fence and buried perimeters simultaneously. Any disturbance creates a signal that is analyzed by the FR-201 controller. The system generates a pinpoint location alarm within a few meters, and the exact intrusion point is displayed on the monitoring system. This allows security teams to respond quickly and accurately to real threats.

Fence Intrusion Detection

• Climbing
• Cutting
• Pulling or lifting of the fence
• Fence tampering

Buried Perimeter Detection

• Digging
• Tunneling
• Ground disturbance near walls or foundations
• Covert intrusion attempts

Pinpoint Location Alarms

• Intrusion location accuracy within a few meters
• Supports multiple simultaneous intrusion events

Integration

• Alarm data available via:
  • TCP/IP (XML, ASCII, Modbus)
  • Relay outputs
• Can automatically trigger PTZ cameras, hooters, and flood lights

Key Advantages for Electrical Substation Security

• Early detection before breach
• Alarms displayed on the map with precise meter location and GPS coordinates
• Extremely low nuisance alarms with 24×7 reliable security due to intelligent pattern recognition algorithms
• No electrical power required in the field
• Immune to EMI, lightning, and harsh weather conditions
• Cut-immune configuration — system remains operational even if the cable is cut
• High reliability for mission-critical power and grid infrastructure
• Centralized monitoring from the substation control room, grid command center, or remote monitoring facility
• Precise location of the intrusion enables accurate camera triggering
