General Details for Train Detection and Monitoring Perimeter Security

Train detection and monitoring systems provide a reliable, multi-layered safety and security solution designed to monitor train movement, detect unauthorized access, and prevent operational disruptions along railway tracks and critical rail infrastructure. The system uses fiber-optic–based sensing technology for real-time detection of train movement, vibration, and track-side activities. Combined with intelligent surveillance, secure monitoring systems, and centralized command-and-control, it ensures continuous tracking, rapid incident response, improved rail safety, and efficient railway operations.

FR-302

Train Detection and Monitoring

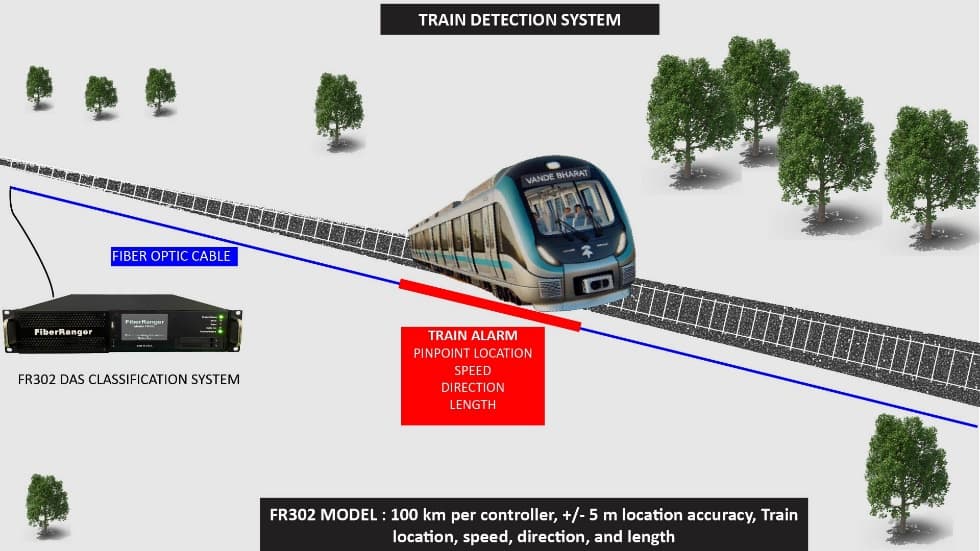

The FR302 Train Detection and Monitoring System provides long-range rail corridor monitoring (up to 100 km per controller) with precise event location (± 5 meters). The technology is based on fiber-optic Distributed Acoustic Sensing (DAS) with advanced AI-based classification, enabling continuous monitoring of railway tracks and surrounding corridors.

The system delivers real-time detection, classification, and tracking of train movement and rail-related activities, improving operational safety, asset protection, and railway security across long distances.

Smart Trackside Installation

A single-mode fiber-optic sensing cable is installed along the railway track, either attached to existing cable routes, laid beside the rail line, or integrated within trackside infrastructure.

Every vibration and acoustic event generated by rail movement or nearby activity is analyzed in real time by the FR302 controller, which generates classified alarms and precise location data.

The system detects:

Train movement and approach
Train speed and direction
Rail vibrations and wheel movement
Trackside disturbances
Unauthorized access near tracks

This enables railway operators to perform rapid assessment and timely operational decisions.

Smart Buried Rail Corridor Monitoring

A fiber-optic cable can also be buried along railway corridors at a typical depth of 0.3 m to 1.5 m to provide invisible and tamper-proof monitoring.

The system detects:

Human footsteps near railway lines
Manual digging near tracks
Machine excavation activity
Vehicle movement near rail corridors
Ground disturbances affecting rail safety

The buried installation provides continuous protection in remote or open railway sections where fencing is not available.

AI-Based Event Classification

The FR302 does not only detect activity — it intelligently classifies events using advanced artificial intelligence, including:

Train movement
Track vibration patterns
Human footsteps
Manual digging
Machine digging
Vehicle movement
Heavy equipment operation
Trackside intrusion
Maintenance vs. unauthorized activity

This AI classification ensures high detection accuracy with very low nuisance alarms, even in noisy railway environments.

Pinpoint Location & Long-Range Coverage

Location accuracy: Typically within ± 5 meters
Coverage range: Up to 80 km per system
Real-time tracking of moving trains
Detects multiple simultaneous events
Software-defined virtual zones for flexible rail operations

Operators can instantly identify event locations for faster incident response and improved operational safety.

High Reliability for Railway Monitoring

Cut-immune configuration — system remains operational even if the cable is cut
100% intelligent redundant controller design
No electrical power required in the field
Immune to EMI, RFI, lightning, and harsh weather conditions
Designed for 24×7 mission-critical railway monitoring
Alarms displayed on map with precise meter location and GPS coordinates

Alarm & System Integration

Alarm outputs via XML, ASCII, Modbus, HTTP, gRPC, and relay contacts
Seamless integration with Railway Command & Control systems
Compatible with GPS/GIS mapping platforms
Supports centralized railway monitoring and analytics
